Print-ready A4 model sheets for the showroom, events and customer handouts.

Official Morocco

820RR motorcycle

Inline triple818.8 cc99 kW

Supersport motorcycle

820RR

Triple force. Total focus.

ENGINE: 3-cylinder, DOHC, 12-valve, oil and liquid-cooled
MAX POWER: 99 kW / 12,000 rpm
MAX TORQUE: 80 Nm / 9,500 rpm
DISPLACEMENT: 818.8 cc
BORE × STROKE: 80 × 54.3 mm
COMPRESSION: 13:1
FUEL INJECTION: BOSCH EFI

FRONT SUSPENSION: Fully adjustable preload and damping
REAR SUSPENSION: Central monoshock, fully adjustable preload and damping
FRONT BRAKE: Dual 320 mm floating discs, 4-piston calipers
REAR BRAKE: 220 mm disc, 2-piston caliper
TIRES: 120/70 ZR17 - 190/55 ZR17
WHEELBASE: 1,419.5 - 1,423 mm
SEAT HEIGHT: 825 mm
WEIGHT: 193 kg
FUEL TANK: 18 L

Official Morocco

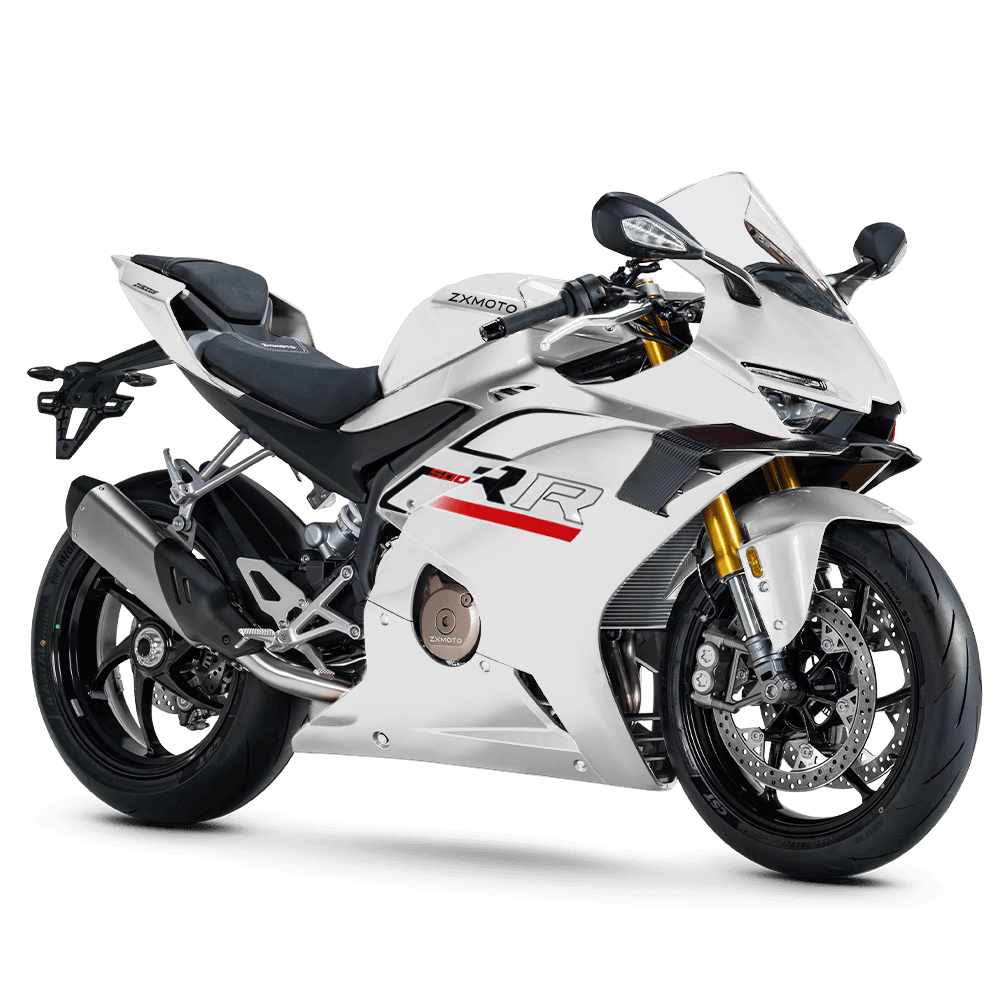

500RR motorcycle

Inline four470 cc85 PS

Sport motorcycle

500RR

Built to chase the apex.

ENGINE: Inline-four - DOHC - liquid-cooled
MAX POWER: 85 PS / 13,500 rpm
MAX TORQUE: 46 Nm / 11,500 rpm
DISPLACEMENT: 470 cc
BORE × STROKE: 59 × 43 mm
FUEL INJECTION: BOSCH EFI
CLUTCH: Wet multi-plate slipper clutch

FRONT SUSPENSION: Ø 41 mm inverted fork, fully adjustable preload and damping
REAR SUSPENSION: Central monoshock, fully adjustable preload and damping
BRAKES: ABS + TCS and cornering ABS
TIRES: 120/70 ZR17 - 180/55 ZR17
RIDE MODES: Sport / Street / Beginner / 2 custom modes
WHEELBASE: 1,395 mm
SEAT HEIGHT: 800 mm
WEIGHT: 168 kg
FUEL TANK: 15 L

Official Morocco

500F motorcycle

Inline four470 cc54 kW

Naked motorcycle

500F

Classic pulse. Modern control.

ENGINE: Inline-four, DOHC, 16-valve, liquid-cooled
MAX POWER: 54 kW / 11,000 rpm
MAX TORQUE: 48 Nm / 9,500 rpm
DISPLACEMENT: 470 cc
BORE × STROKE: 59 × 43 mm
COMPRESSION: 12:1
FUEL INJECTION: BOSCH EFI

FRONT SUSPENSION: Inverted fork with adjustable damping
SWINGARM: Conventional aluminum-alloy swingarm
FRONT BRAKE: Dual 300 mm floating discs and floating calipers
REAR BRAKE: 220 mm disc, 1-piston floating caliper
TIRES: 120/70 ZR17 - 180/55 ZR17
WHEELBASE: 1,395 mm
SEAT HEIGHT: 795 mm
WEIGHT: 175 kg
FUEL TANK: 15.5 L

Official Morocco

MX250 motorcycle

Single cylinder249.9 cc30 kW

Off-road motorcycle

MX250

Light enough to fly.

ENGINE: Single-cylinder, DOHC, 4-valve, four-stroke
MAX POWER: 30 kW / 12,500 rpm
DISPLACEMENT: 249.9 cc
BORE × STROKE: 79 × 51 mm
COMPRESSION: 13.9:1
FUEL INJECTION: BOSCH EFI with dual injectors
CLUTCH: Wet multi-plate hydraulic slipper clutch

FRONT SUSPENSION: KYB 48 mm inverted fork, adjustable, 305 mm travel
REAR SUSPENSION: KYB reservoir shock, adjustable, 302 mm travel
BRAKES: Floating front disc / monobloc rear caliper
TIRES: 80/100-21 - 100/90-19
WHEELBASE: 1,485 mm
GROUND CLEARANCE: 325 mm
SEAT HEIGHT: 960 mm
NET WEIGHT: 105 kg
FUEL TANK: 6.5 L
